Making patterning simple

Szimpla revolutionizes semiconductor manufacturing by eliminating the need for masks and photoresists. We deliver patterned deposition equipment to semiconductor manufacturers, offering lower fabrication costs, rapid device prototyping, and 3D patterning capabilities.

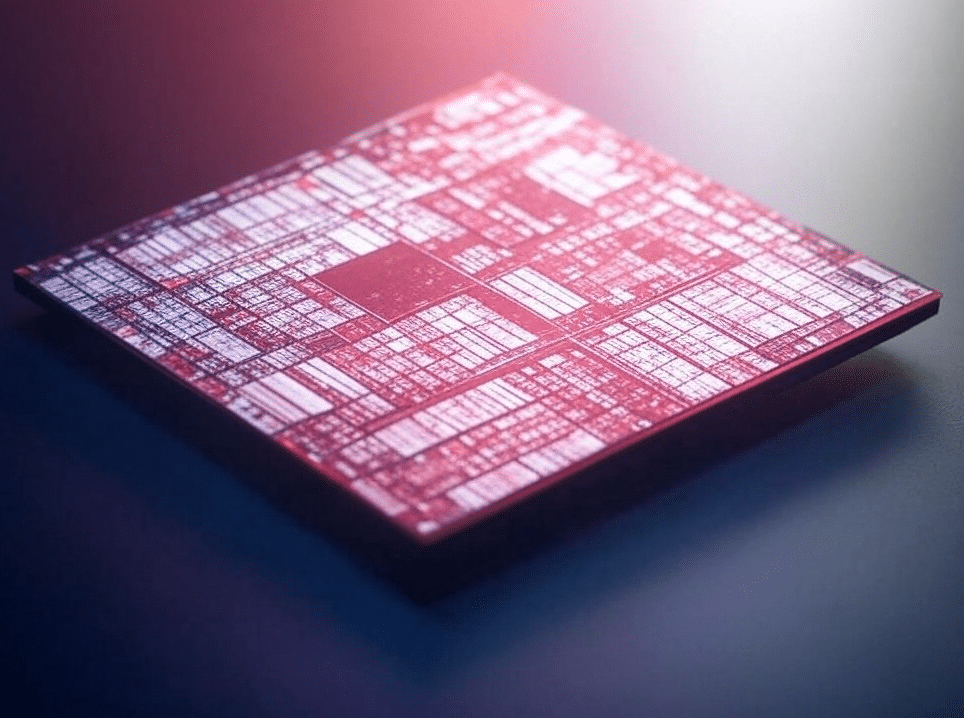

PlaceholderImage1314

Low Cost Fabrication

Szimpla's equipment reduces the financial barrier to device fabrication, allowing for cost-effective experimentation and development without compromising on quality.

Rapid Prototyping

With Szimpla's technology, you can accelerate development cycles, turning ideas into prototypes in days, not months, to keep pace with the fast-evolving semiconductor landscape.

3D Patterning Solution

Szimpla introduces 3D patterning into your research toolkit, enabling the creation of complex, multi-layered devices that can push the boundaries of what's possible with traditional 2D layer stacking.
